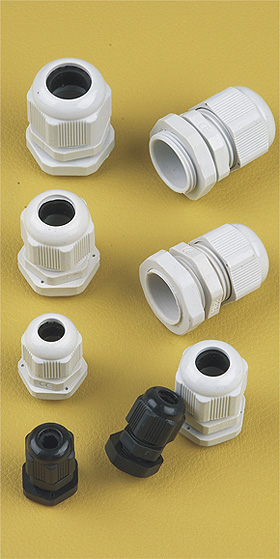

เคเบิ้ลแกรนด์แบบไนล่อน(PG)

· Material：made from UL Nylon 66, 94V-2  and tight  ring from rubber.
· Feature：
 1.Special designation, good strengthsile and none damage to electrical machine.
 2.not need to dismetgrate  the fix terminal,  cable  can be inserted throug directly then tighten easy and save time.
· Application：used for machinery control box,  distribution plate, machine and electrical, etc.

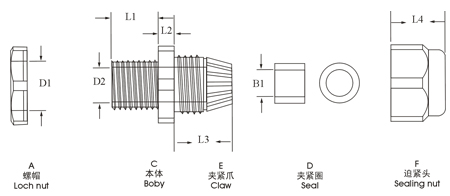

ITEM.NO. D1 D2 L1 L2 L3 L4 B1 Cable range PG-07 12.1 8.7 8.3 5 15.0 13.8 6.9 3.5-6 PG-09 16.2 11.1 8.7 4.6 16.1 15.7 8.9 4-8 PG-11 18.2 13.4 8.7 5.1 18.1 17.9 11.3 5-10 PG-13.5 20.1 15.5 8.7 5.0 19.2 18.3 12.8 6-12 PG-16 22.3 17.6 11.3 5.2 20.2 18.1 13.7 10-14 PG-19 24.1 19.1 11.1 5.1 21.1 20.5 15.8 12-15 PG-21 26.7 21.4 11.1 5.1 23.0 22.0 17.4 13-18 PG-24 30.1 24.8 12.8 5.8 23.9 23.7 23.1 15.22 PG-29 35.9 28.8 11.9 6.9 24.4 23.5 25.3 18-25 PG-36 46.4 39.1 16.0 7.8 30.7 27.3 31.9 22-32 PG-42 53.9 46.7 15.4 7.9 33.2 28.5 37.1 30-38 PG-48 60.2 52.6 18.0 7.9 35.5 30.3 45.1 34-44 PG-63 70.6 63.9 28.9 8.9 41.4 41.3 49.3 42-54
