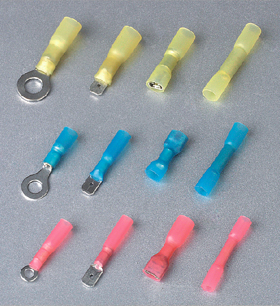

Heat Shrinkable Terminals(water proof)

*new
1)

Maximum Electric Current:

A.W.G.	22	20	18	16	14	12	10
AMP.	9	12	17	18	30	35	50

Maximum Electrical Rating:600 Volts Max.
Insulation Material:High Density Pe. With Copper Sleeve On Barrel
Insulation Color:
22-16A.W.G.:Red                 16-14A.W.G.:Blue                 12-10A.W.G.:Yellow
Terminal Material: Copper



2)

Maximum Electric Current:

A.W.G.	22	20	18	16	14	12	10
AMP.	9	12	17	18	30	35	50

Maximum Electrical Rating: 300 Volts Max.
Insulation Material: High Density Pe. With Copper Sleeve On Barrel
Insulation Color:
22-16A.W.G.:Red                 16-14A.W.G.:Blue                 12-10A.W.G.:Yellow
Terminal Material: Brass
