· Material: Nylon 66, 94V-2, agreed by UL. Acid and corrode resisting, insulate,
not apt to age.
· Usage: insert tie to the hole of table and tighten it.

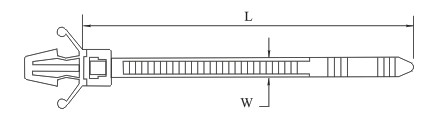

| Push mount ties(releasable) |
| ITEM.NO. |
L |
W(mm) |
MAX.BUNDLE DIA.(mm) |
TENSILE STRENGTH |
HOLE DIA |
PANEL THICKNESS |
| INCH |
MM |
LBS |
KGS |
INCH |
MM |
INCH |
MM |
| CHS-150PT |
6" |
150 |
8.0 |
37 |
40 |
18 |
0.252 |
6.4 |
0.126 |
3.2 |
| CHS-175PT |
65/6″ |
175 |
8.0 |
44 |
40 |
18 |
0.252 |
6.4 |
0.126 |
3.2 | |
 |
| ITEM.NO. |
L |
W(mm) |
MAX.BUNDLE DIA.(mm) |
TENSILE STRENGTH |
HOLE DIA |
PANEL THICKNESS |
| INCH |
MM |
LBS |
KGS |
INCH |
MM |
INCH |
MM |
| CHS-165PT |
61/2″ |
165 |
8.0 |
38 |
40 |
18 |
0.394 |
10.0 |
0.126 |
3.2 | |
 |

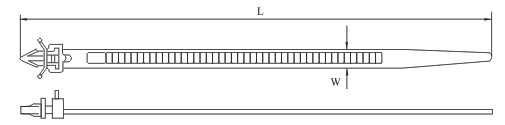

| Push mount ties |
| ITEM.NO. |
L |
W(mm) |
MAX.BUNDLE DIA.(mm) |
TENSILE STRENGTH |
HOLE DIA |
PANEL THICKNESS |
| INCH |
MM |
LBS |
KGS |
INCH |
MM |
INCH |
MM |
| CHS-100PT |
4″ |
100 |
2.5 |
22 |
18 |
8.0 |
0.189 |
4.8 |
0.094 |
2.4 |
| CHS-120PT |
43/4″ |
120 |
3.2 |
25 |
30 |
13.6 |
0.157 |
4.0 |
0.079 |
2.0 |
| CHS-120PPT |
43/4″ |
120 |
4.8 |
25 |
50 |
22.0 |
0.252 |
6.4 |
0.126 |
3.2 |
| CHS-160PT |
61/4″ |
160 |
4.8 |
38 |
50 |
22.0 |
0.252 |
6.4 |
0.126 |
3.2 |
| CHS-190PT |
71/2″ |
190 |
4.8 |
45 |
50 |
22.0 |
0.252 |
6.4 |
0.126 |
3.2 | |
 |
