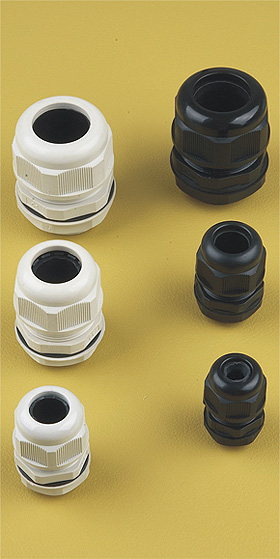

Nylon cable glands(MG)

· Threaded entry：Metric
· Color ：black and grey
· Working temperature：-40℃-100℃，the item can also endure 120℃ instantly
· protection：IP68
· Standard：IEC698

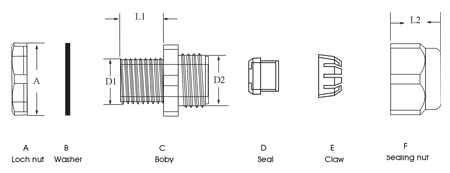

ITEM.NO. Threaded entry metric (mm) Cable range Ф(mm) D1 D2 Panel mounting hole (mm) L1 L2 A (mm) MG-12 M12×1.25 7.6-4.6 12 M16×1.5 12.5 8.5 16 19 MG-16 M16×1.5 10-6 16 M20×1.5 16.5 15 19.5 24 MG-20 M20×1.5 14-9 20 M25×1.5 20.5 15 21.5 30 MG-25 M25×1.5 18-13 25 M31×2 25.5 15 24.5 36 MG-32 M32×1.5 25-18 32 M38×2 33 15 27.5 46 MG-40 M40×1.5 30-24 40 M46×2 41 20 31 54 MG-50 M50×1.5 39-30 50 M58×2 51 23 37 67 MG-63 M63×1.5 48.5-40 63 M72×2 64 24 42 81.5
