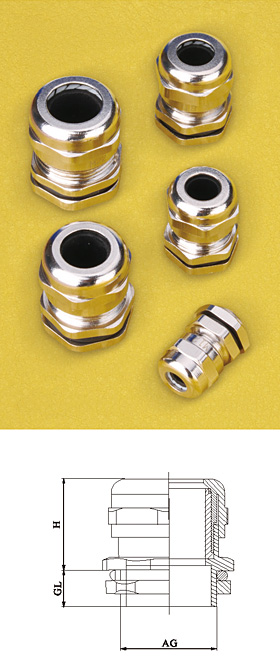

Brass Cable Glands

·Material:Body:Nickel-plated brass,Seal:PA66,Sealing:NBR.
·Certification:CE,ROHS,REACH.
·Protection rating:IP68.
·Operaring Temperature:Static condition:-40℃ to 100℃,short-time 120℃. Dynamic condition:-20℃ to 80℃,short-time 100℃.
·Thread length:Srandard thread type is suitable for equlpment with internal thread or with thin plate.Longer thread type is suitable for thick plate.
·Feature:special design of the clamp and seals, extremely easy installation,sult for wide range of cable, strong stretching resistance,waterproof, dust proof, resist to salt, acid, alcohol,grease and other solvent.
·Application:fix the cable gland on the plate, insert cable through the assembled gland and tighten gland locknut until cable is secured.
·Notes:Custonmization is available.

*new

ITEM.NO.	Cable range (mm)	Thread O.D. (mm)	Mounting hole diameter (mm)	Thread length GL (mm)	Loint length H (mm)	`Spanner size (mm)
M8×1	5.5-2	8	8-8.2	5	16	12
M10×1	6.5-3	10	10-10.2	7	19	14
M12×1.5	6.5-3	12	12-12.2	7	19	14
M14×1.5	8-4	14	14-14.2	7	19	17
M16×1.5	8-4	16	16.16.2	8	20	18
M18×1.5	10-5	18	18-18.2	8	21	20
M20×1.5	12-6	20	20-20.2	8	22	22
M22×1.5	14-10	22	22-22.2	8	23	24
M24×1.5	14-10	24	24-24.2	9	25	24/27
M25×1.5	14-10	25	25-25.2	9	25	24/27
M27×1.5	18-13	27	27-27.2	9	27	30
M28×1.5	18-13	28	28-28.2	9	27	30
M30×1.5	18-13	30	30-30.2	9	29	30/32
M32×1.5	22-15	32	32-32.2	10	29	35
M36×1.5	25-18	36	36-36.2	10	31	40
M40×1.5	25-18	40	40-40.2	11	31	40/45
M42×1.5	30-22	42	42-42.2	11	35	45
M48×1.5	33-25	48	48-48.2	11	37	50/52
M50×1.5	38-32	50	50-50.2	12	37	50/55
M54×1.5	38-32	54	54-54.2	12	38	57
M60×1.5	44-37	60	60-60.2	13	38	64
M63×1.5	44-37	63	63-63.2	13	38	64/58
PG7	6.5-3	12.5	12.5-12.7	7	19	14
PG9	8-4	15.2	15.2-15.4	8	20	17
PG11	10-5	18.6	18.6-18.8	8	21	20/21
PG13.5	12-6	20.4	20.4-20.6	8	22	22
PG16	14-10	22.5	22.5-22.7	9	23	24
PG19	14-10	25	25-25.2	9	25	24/27
PG21	18-13	28.3	28.3-28.5	9	27	30
PG25	22-15	32	32-32.2	10	29	35
PG29	25-18	37	37-37.2	11	31	40
PG36	33-25	47	47-47.2	12	37	50
PG42	38-32	54	54-54.2	13	38	57
PG48	44-37	59.3	59.3-59.5	14	38	64
PG63	52-42	72	72-72.2	15	42	77
